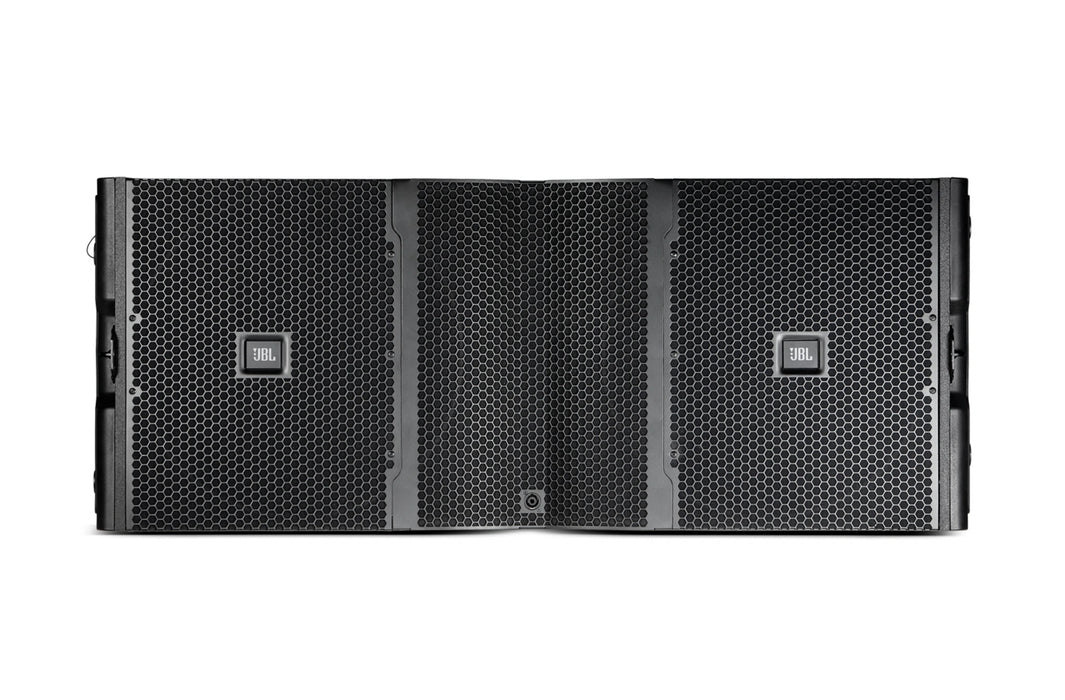

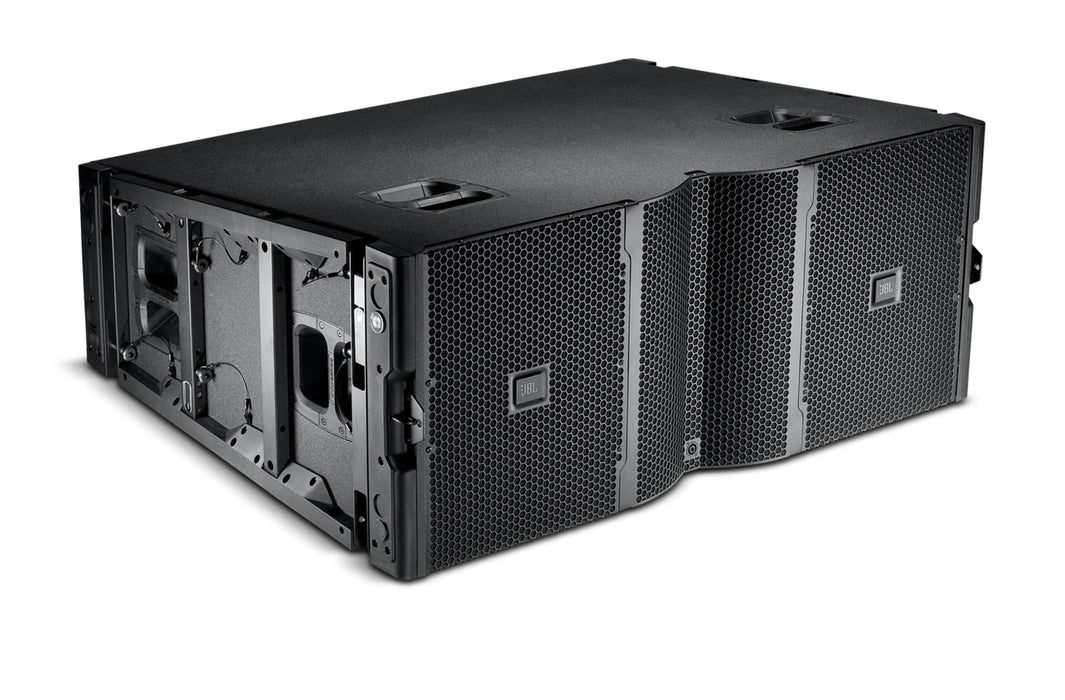

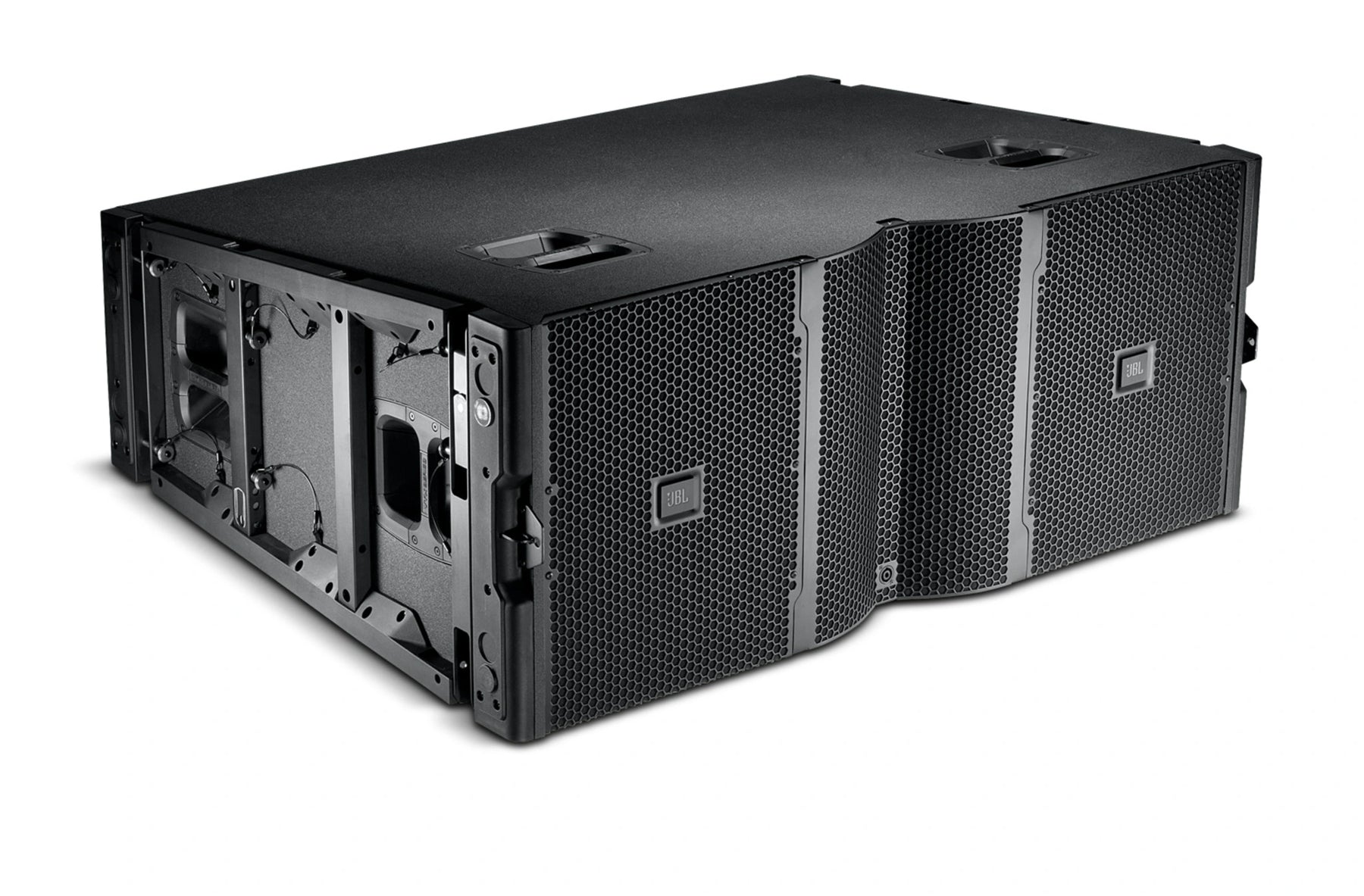

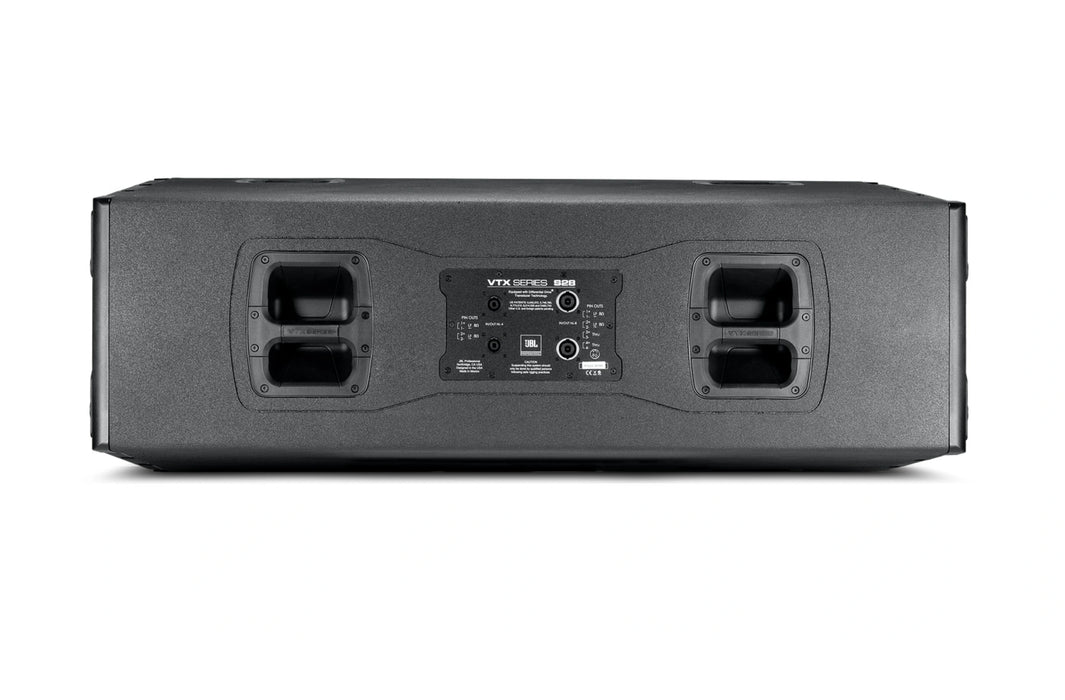

VTX series dual 18" subwoofers employ two 2269H 18" transducers featuring Differential Drive technology with two voice coils, two neodymium magnets and extremely high peak-to peak excursion capabilities to deliver extended very low frequency performance.
The VTX S28 can be suspended or ground-stacked and is cardioid-arrayable in either configuration for improved rear rejection. Compatible with VTX V25 suspension, S28 can be suspended at the top of V25 arrays to extend the effective low frequency line length, providing improved vertical pattern control combined with improved rear rejection when used in cardioid mode.
Product Specifications
| System Type | Full Size Suspendable, Cardioid-Arrayable, Dual 18" Subwoofer with Ultra Long Excursion Transducers |
| Frequency Range (-10dB) | 29 Hz - 90 Hz (Preset: VTX S28 80) |
| Coverage | Omnidirectional or Cardioid |
| Maximum Peak Output | 139dB (Preset: VTX S28 80) |
| System Amplification | Crown Audio I-Tech HD |
| System Impedance | 2x 8 ohms |
| LF Driver | (2) JBL 2269H 18-inch Neodymium Differential Drive® woofer |
| Enclosure | Finnish birch plywood, Black DuraFlex finish, ten integral recessed handles |
| Inter-Enclosure Angles | 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 |
| Dimensions (H x W x D) | 493 mm x 1222 mm x 926 mm 19.4 in x 48.1 in x 36.5 in |
| Net Weight (each) | 83.0 kg (183 lb) |
