The VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.
Prodcut Specifications

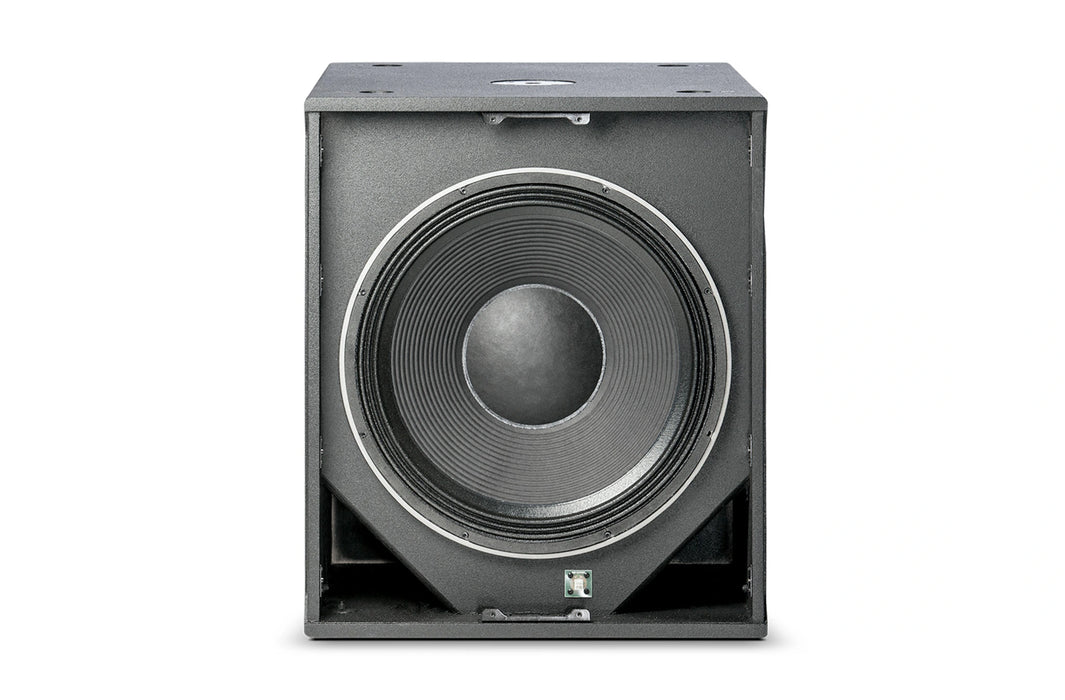

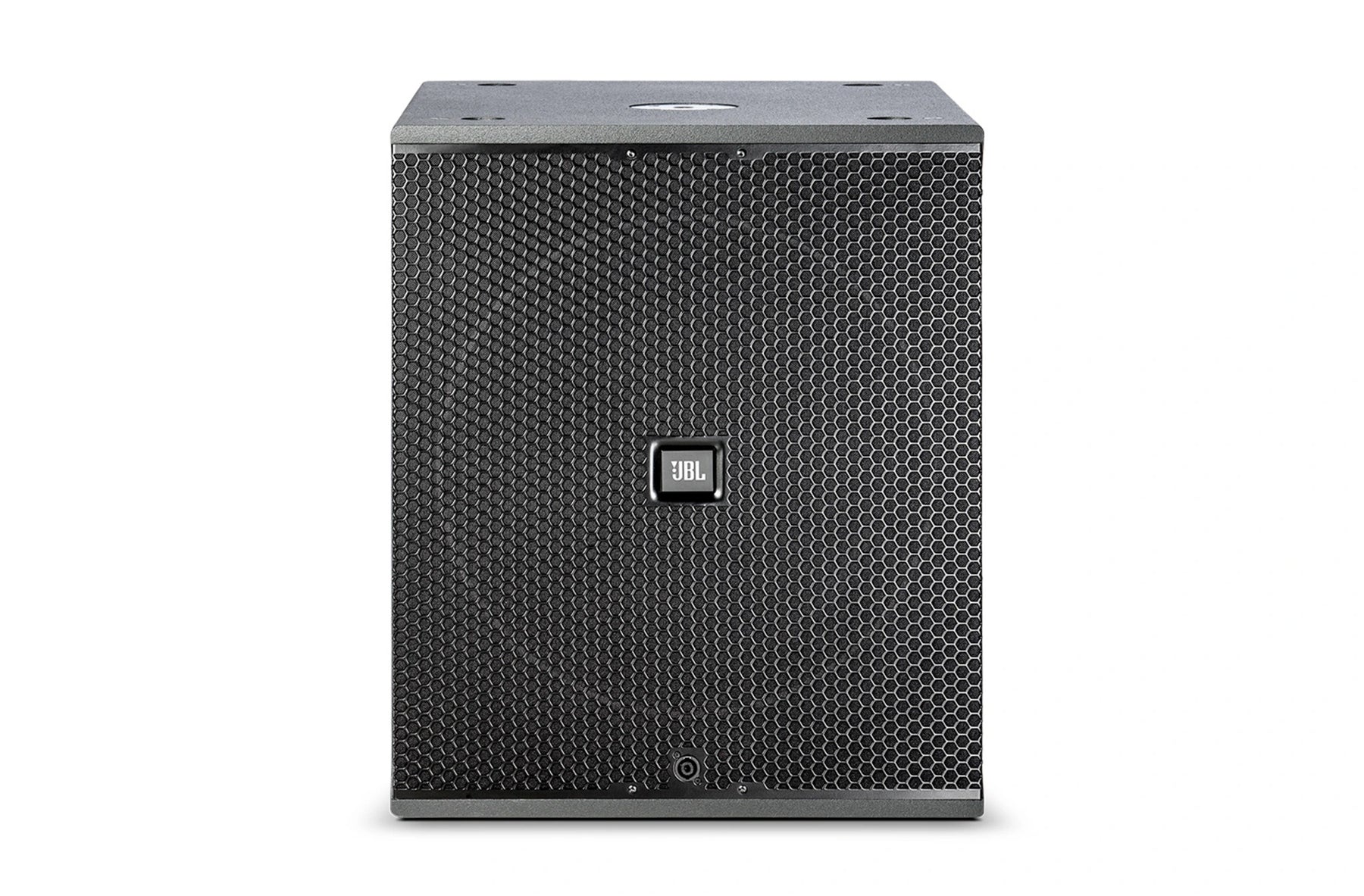

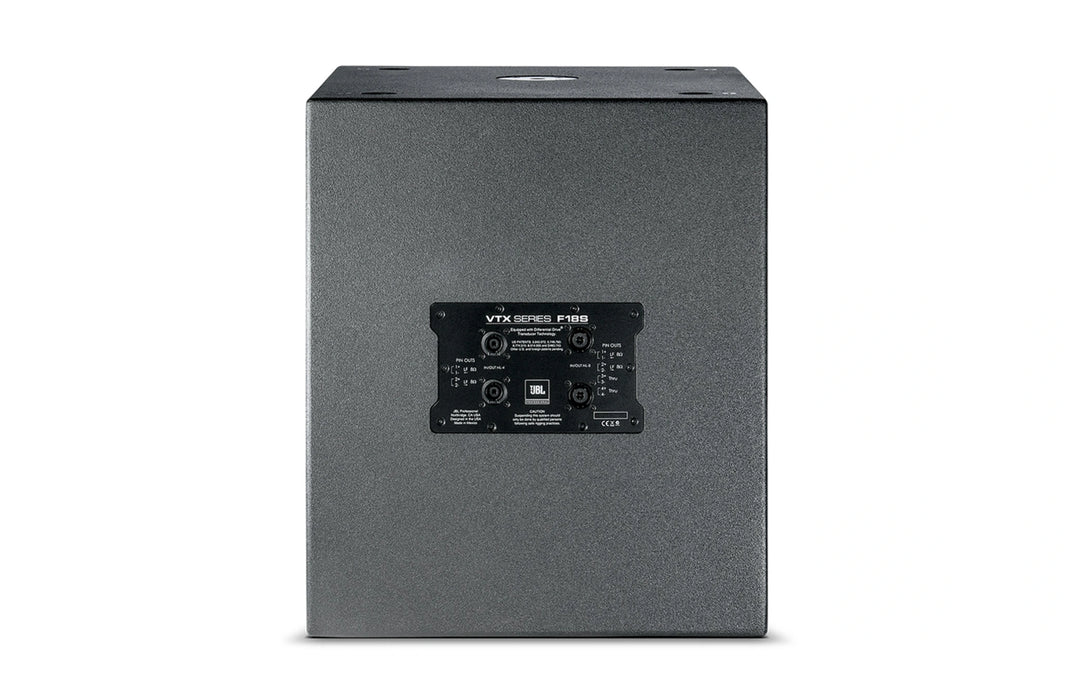

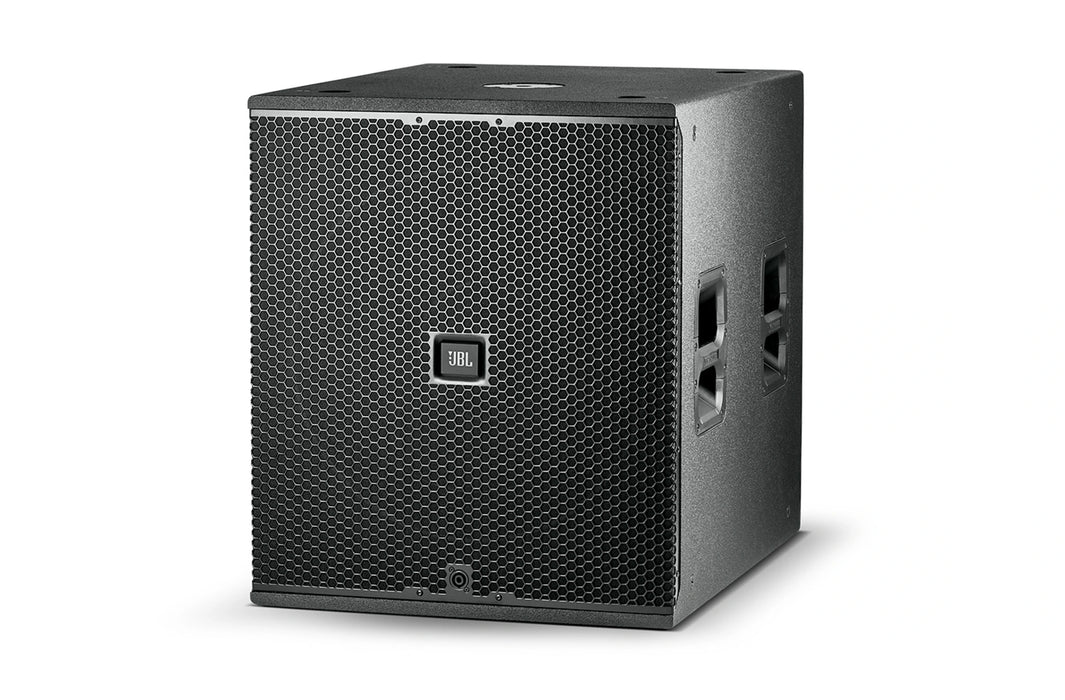

| System Type | High Power Single 18” Differential Drive® Subwoofer |
| Components | 1 x 2269H, 460 mm (18 in) dia.,100 mm (4 in) Dual Coil Neodymium Differential Drive®, Direct Cooled™ Transducer |
| Frequency Range (-10dB) | 24 Hz - 100 Hz |
| Frequency Response (±3 dB) | 32.5 Hz - 80 Hz |
| Sensitivity | 97db half space |
| Nominal Impedance | 8 ohms |
| Transducer Power Rating (AES 2 hour) | 2000W cont 8000W peak |
| Dimensions (H x W x D) | 640.1mm x 548.6mm x 713.7mm (25.2in x 21.6in x 28.1in) |
| Net Weight (each) | 45.4 kg (100 lbs) |
| LF Driver | 1 x 460 mm (18 in) dia.,100 mm (4 in) Dual Coil Neodymium Differential Drive®, Direct Cooled™ Transducer |
| Maximum SPL (1m) | 133dB (Preset: VTX F18S 80) |
| Enclosure | 18 mm, 11-ply Baltic birch plywood; black DuraFlex™ finish |
